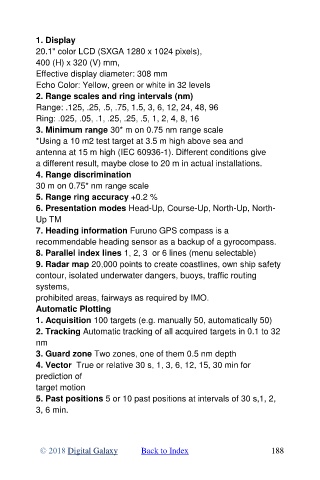

1. Display
20.1" color LCD (SXGA 1280 x 1024 pixels),
400 (H) x 320 (V) mm,
Effective display diameter: 308 mm
Echo Color: Yellow, green or white in 32 levels
2. Range scales and ring intervals (nm)
Range: .125, .25, .5, .75, 1.5, 3, 6, 12, 24, 48, 96
Ring: .025, .05, .1, .25, .25, .5, 1, 2, 4, 8, 16
3. Minimum range 30* m on 0.75 nm range scale
*Using a 10 m2 test target at 3.5 m high above sea and
antenna at 15 m high (IEC 60936-1). Different conditions give
a different result, maybe close to 20 m in actual installations.
4. Range discrimination
30 m on 0.75* nm range scale
5. Range ring accuracy +0.2 %
6. Presentation modes Head-Up, Course-Up, North-Up, North-
Up TM
7. Heading information Furuno GPS compass is a
recommendable heading sensor as a backup of a gyrocompass.
8. Parallel index lines 1, 2, 3 or 6 lines (menu selectable)
9. Radar map 20,000 points to create coastlines, own ship safety
contour, isolated underwater dangers, buoys, traffic routing
systems,
prohibited areas, fairways as required by IMO.
Automatic Plotting
1. Acquisition 100 targets (e.g. manually 50, automatically 50)
2. Tracking Automatic tracking of all acquired targets in 0.1 to 32
nm
3. Guard zone Two zones, one of them 0.5 nm depth
4. Vector True or relative 30 s, 1, 3, 6, 12, 15, 30 min for
prediction of
target motion
5. Past positions 5 or 10 past positions at intervals of 30 s,1, 2,
3, 6 min.
