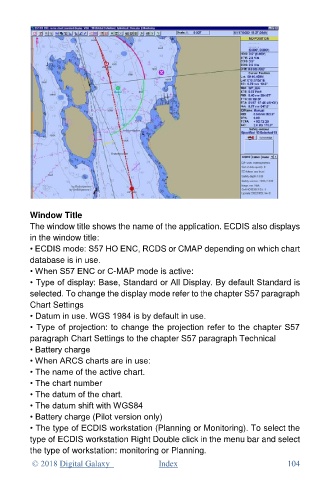

Window Title
The window title shows the name of the application. ECDIS also displays
in the window title:
• ECDIS mode: S57 HO ENC, RCDS or CMAP depending on which chart
database is in use.
• When S57 ENC or C-MAP mode is active:
• Type of display: Base, Standard or All Display. By default Standard is
selected. To change the display mode refer to the chapter S57 paragraph
Chart Settings
• Datum in use. WGS 1984 is by default in use.
• Type of projection: to change the projection refer to the chapter S57
paragraph Chart Settings to the chapter S57 paragraph Technical
• Battery charge
• When ARCS charts are in use:
• The name of the active chart.
• The chart number
• The datum of the chart.
• The datum shift with WGS84
• Battery charge (Pilot version only)
• The type of ECDIS workstation (Planning or Monitoring). To select the
type of ECDIS workstation Right Double click in the menu bar and select
the type of workstation: monitoring or Planning.
